THE ULTIMATE LIGHT BAR

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance.  The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.

Registered Design: 201915829.



KEY FEATURES:

  • CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment



Registered Design: 201915829



  • IP68 - Submersible to 3m
  • Deutsch DT 15A connector
  • 32mm diameter parabolic reflectors
  • Spread and Spot beam pattern
  • 4mm thick 304 stainless steel side brackets included.

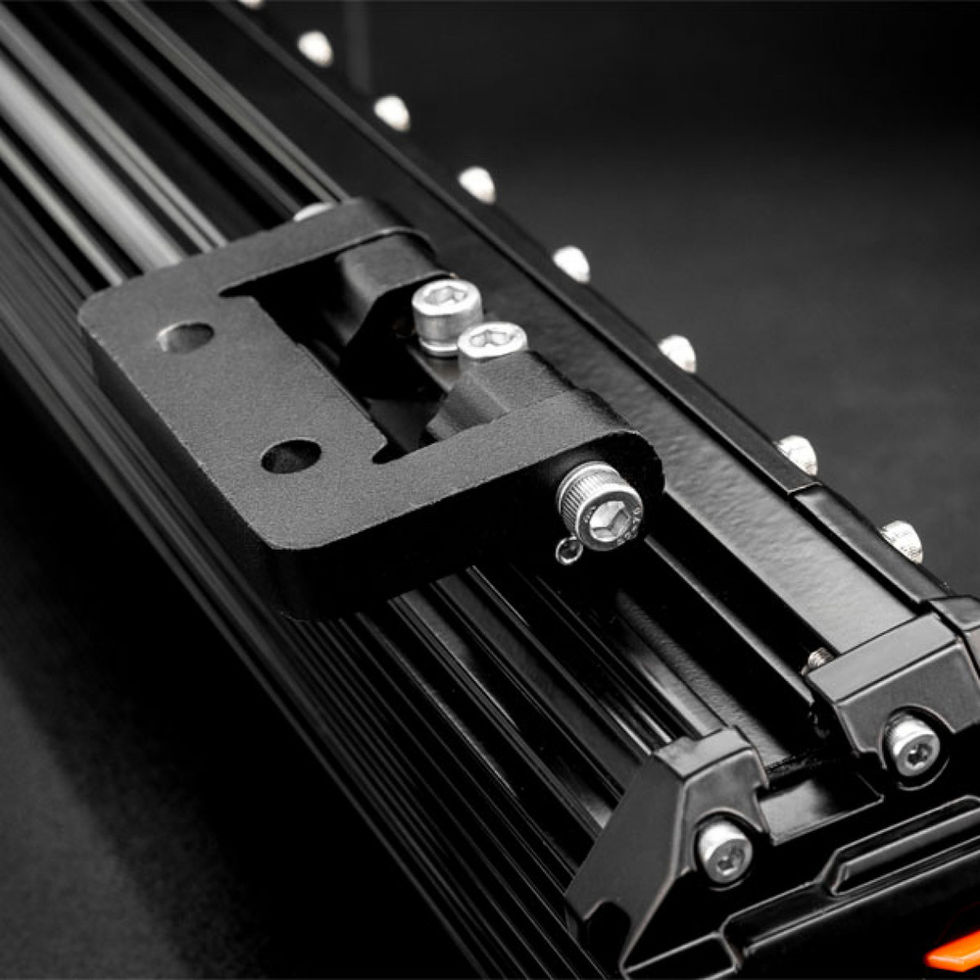

  • Cast Alloy adjustable sliding bracket included.
  • Nitto Denko™ Breather with PTFE microporous membrane
  • Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) included

  •

WHAT’S IN THE BOX:

  • ST3303 PRO 32 LED Light Bar
  • Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
  • 2 x Lower Mountings Brackets with Stainless Steel Fasteners
  • 2 x 4mm thick Stainless Steel Brackets
  • 2 x Orange End Caps
  • 2 x Grey End Caps



SPECIFICATIONS:



LED MANUFACTURERCREE XPL Hi
LED COUNT32
VOLTAGE9V & 32V
CURRENT DRAW (AMPERES)16.4a @13.6v
LENS MATERIALOPTICAL GRADE, HARD COATED LEXAN
RAW LUMENS31,040Lm
EFFECTIVE LUMENS17,920Lm
PEAK INTENSITY (CANDELA)474,721cd
HOUSING MATERIALA360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN50,000
FLOOD BEAM50°
SPOT BEAM
INGRESS PROTECTIONIP68
OPERATING TEMP-40˚C ~ +150˚C
WEIGHT2.850kg

STEDI ST3303 Pro Ultra Light LED Light bar - 23.3"

SKU: LED3303-PRO-32L
$519.00Price

    Please get in contact to check for stock availability.
