New 2020 Version 2 Design: Our new May 2020 release bracket fits Rhino-Rack Platform both new and old variants.

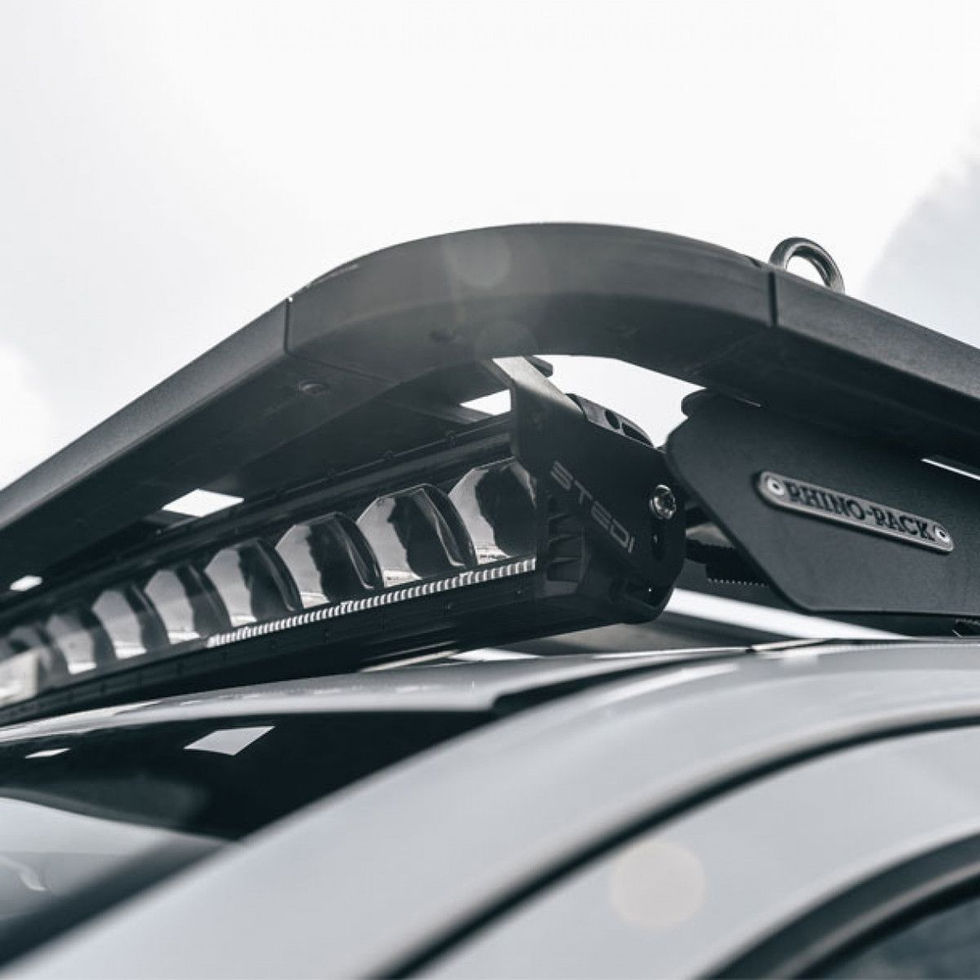

We may be a little biased, but we think this is the sleekest Rhino Rack™ LED Light Bar mounting solution on the market. Designed by STEDI to specifically to suit the Rhino Rack™ Pioneer Platform. This is the only solution on the market that is 100% bolt-on.



KEY PRODUCT FEATURES

  • Manufactured using 4mm thick stainless steel.
  • The powder-coat is a textured finish which precisely matches the tone and texture of the Rhino Rack™
  • The light bar mounting points are slotted allowing height optimization of the light bar.
  • Ability to slide the mounts backward and forward along the platform channel.
  • Mounts lights directly below the Rhino platform
  • Add-on front mount plate allows the light bar to sit in front of the Rhino Rack™



SUITS THE FOLLOWING RHINO RACK™

  • Pioneer Platform 4 & 5 plank
  • Pioneer Tray 4 & 5 plank
  • Pioneer Tradie 4 & 5 plank



4 PLANK (OLD) - Up to October 2019

A) Stand Alone: MIN 1016mm / MAX 1212mm | ST2K 16L, ST3K 40L, ST4K 80L

B) Extensions Inwards: MIN 988mm / MAX 1174mm | ST2K 16L, ST3K 40L, ST3301 26L, ST3303 PRO 60L, ST4K 80L

C) Extensions Outwards: MIN 1062mm / MAX 1250mm | ST4K 80L



5 PLANK (OLD) - Up to October 2019

A) Stand Alone: MIN 1248mm / MAX 1340mm | ST2K 20L, ST3K 50L, ST4K 96L, ST4K 100L

B) Extensions Inwards: MIN 1220mm / MAX 1312mm | ST2K 20L, ST3K 50L, ST4K 96L, ST4K 100L

C) Extensions Outwards: MIN 1294mm / MAX 1388mm | ST2K 20L, ST3K 50L, ST4K 96L, ST4K100L



4 PLANK (NEW) - 2020+

A) Stand Alone: MIN 1016mm / MAX 1184mm | ST2K 16L, ST3K 40L, ST4K 80L

B) Extensions Inwards: MIN 984mm / MAX 1148mm | ST2K 16L, ST3K 40L, ST3301 26L, ST3303 PRO 60L, ST4K 80L

C) Extensions Outwards: MIN 1064mm / MAX 1228mm | ST4K 80L



5 PLANK (NEW) - 2020+

A) Stand Alone: MIN 1246mm / MAX 1320mm | ST2K 20L, ST3K 50L, ST4K 96L, ST4K 100L

B) Extensions Inwards: MIN 1214mm / MAX 1284mm | ST4K 96L

C) Extensions Outwards: MIN 1294mm / MAX 1366mm | ST2K 20L, ST3K 50L, ST4K 96L, ST4K100L



GOOD TO KNOW

Keep in mind that the distance between the underside of the Rhino Rack™ and your vehicle roof will vary from make and model. Before committing to purchase we recommend you cross-check dimensions of the light bar against the clearance available on your specific vehicle.



WHAT’S IN THE BOX

  • 1 x LH Under Mount LED Bar Bracket to suit Rhino Rack
  • 1 x RH Under Mount LED Bar Bracket to suit Rhino Rack
  • 1 x Set of Front mount Light Bar addon plates
  • 4 x M8x18mm button head bolt
  • 10 x M8 flat washer

  • 2 x M8 spring washer
  • 4 x Nylon nuts

  • 2 x M8 Channel nuts
  • 2 x M8x20mm pan head bolt

STEDI Light Bar Bracket to Suit Rhino Rack Platform V2.0

SKU: BRKRHINO-RACK
$119.99Price

    Please get in contact to check for stock availability.
